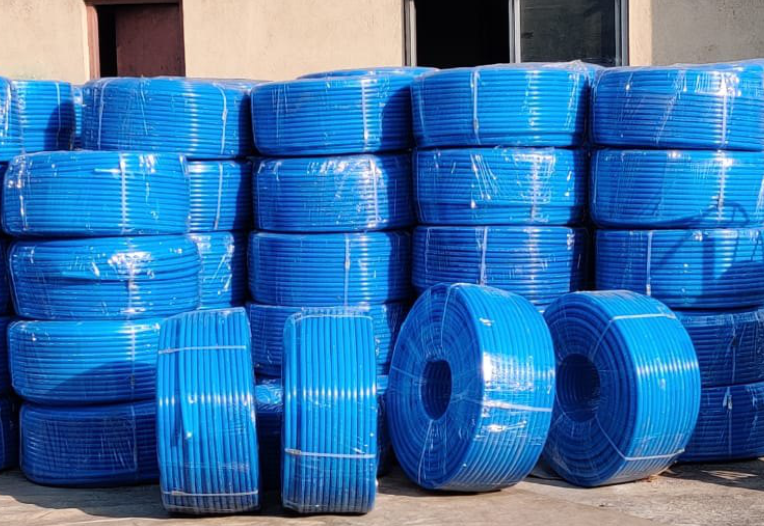

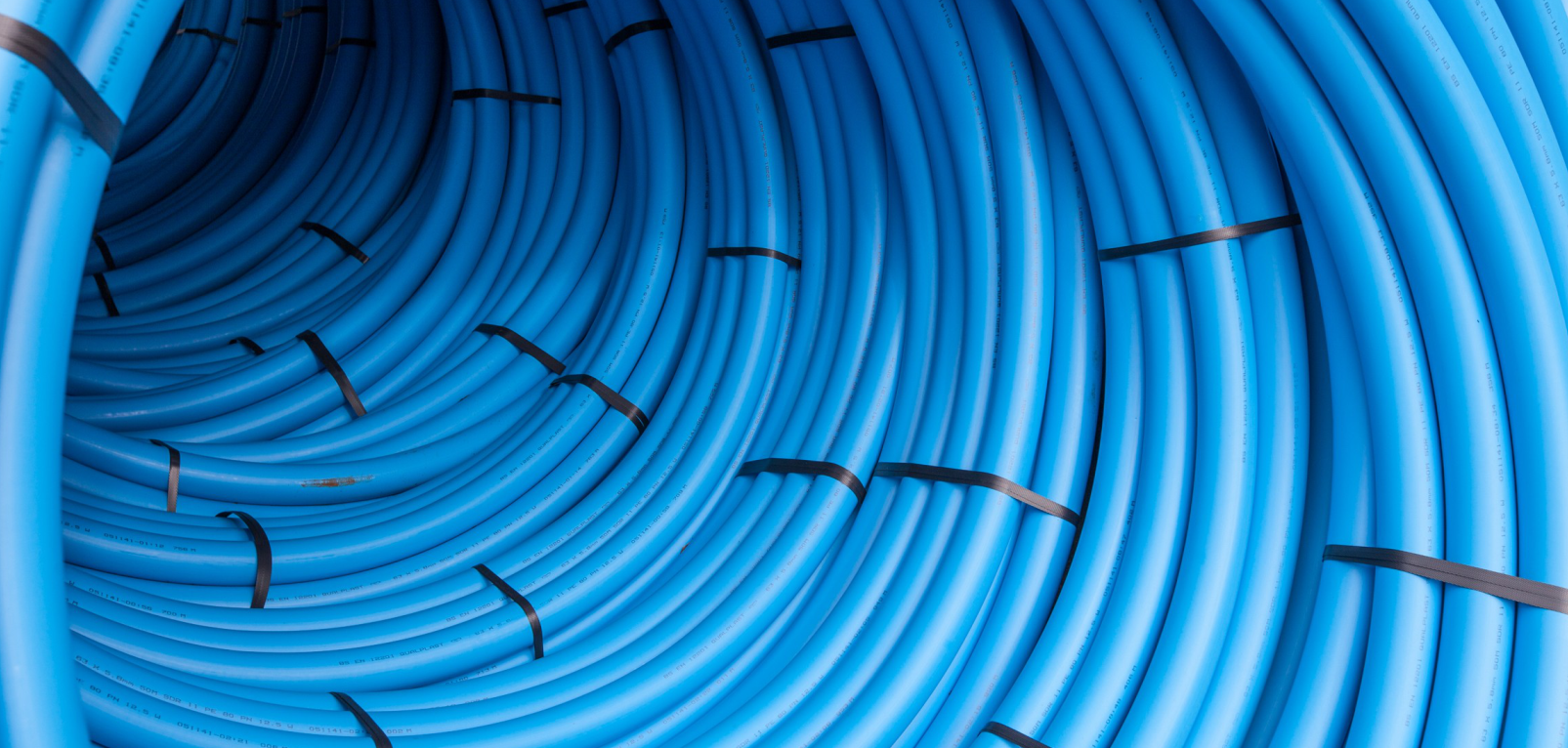

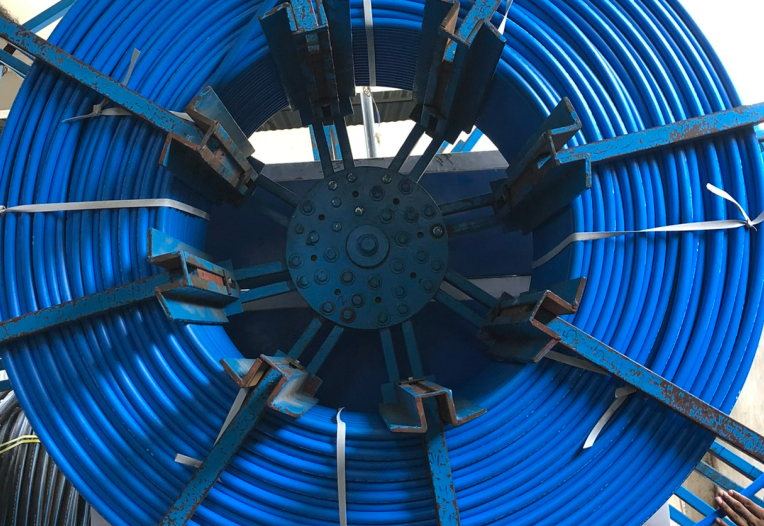

MDPE WATER PIPE
Western is manufacturing MDPE Pipes From 20mm to 500mm with pressure ratings from PN 2.5 - PN 20 in Grades like PE 80 & PE 100 With ISO 4427 Latest Standards.
Key Features
100% Virgin Raw Plastic Pulp Material.
Flexibility And Crush Resistance.
Hydrostatic Strength And Durability
Chemical Resistance.
Non Corroding
SCGR (Slow Crack Growth Resistance) Properties.
No Bacterial Growth.
Leak-free Monolithic Pipe
Wall thicknesses AS PER ISO 4427-2 : 2019
| SDR | SDR 6 | SDR 7.4 | SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 | SDR 33 | SDR 41 | |||||||||||
| GRADE | PE 40 | – | PN 10 | PN 8 | PN 6 | PN 5 | PN 4 | PN 3.2 | PN 2.5 | – | – | ||||||||||
| PE 80 | PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | PN 8 | PN 6 | PN 5 | PN 4 | PN 3.2 | |||||||||||
| PE 100 | – | PN 25 | PN 20 | PN 16 | PN 12.5 | PN 10 | PN 8 | PN 6 | PN 5 | PN 4 | |||||||||||
| Sr.No. | Nominal size | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max |
| 1 | 16 | 3 | 3.4 | 2.3a | 2.7 | 2.0a | 2.3 | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 2 | 20 | 3.4 | 3.9 | 3 | 3.7 | 2.3a | 2.7 | 2.0a | 2.3 | – | – | – | – | – | – | – | – | – | – | – | – |
| 3 | 25 | 4.2 | 4.8 | 3.5 | 4 | 3 | 3.4 | 2.3a | 2.7 | 2.0a | 2.3 | – | – | – | – | – | – | – | – | – | – |
| 4 | 32 | 5.4 | 6.1 | 4.4 | 5 | 3.6 | 4.1 | 3 | 3.4 | 2.4a | 2.8 | 2.0a | 2.3 | – | – | – | – | – | – | – | – |
| 5 | 40 | 6.7 | 7.5 | 5.5 | 6.2 | 4.5 | 5.1 | 3.7 | 4.2 | 3 | 3.5 | 2.4a | 2.8 | 2.0a | 2.3 | – | – | – | – | – | – |
| 6 | 50 | 8.3 | 9.3 | 6.9 | 7.7 | 5.6 | 6.3 | 4.6 | 5.2 | 3.7 | 4.2 | 3 | 3.4 | 2.4a | 2.8 | 2.0a | 2.3 | – | – | – | – |
| 7 | 63 | 10.5 | 11.7 | 8.6 | 9.6 | 7.1 | 8 | 5.8 | 6.5 | 4.7 | 5.3 | 3.8 | 4.3 | 3 | 3.4 | 2.5a | 2.9 | – | – | – | – |
| 8 | 75 | 12.5 | 13.9 | 10.3 | 11.5 | 8.4 | 9.4 | 6.8 | 7.6 | 5.6 | 6.3 | 4.5 | 5.1 | 3.6 | 4.1 | 2.9a | 3.3 | – | – | – | – |
| 9 | 90 | 15 | 16.7 | 12.3 | 13.7 | 10.1 | 11.3 | 8.2 | 9.2 | 6.7 | 7.5 | 5.4 | 6.1 | 4.3 | 4.9 | 3.5 | 4 | – | – | – | – |
| 10 | 110 | 18.3 | 20.3 | 15.1b | 16.8 | 12.3 | 13.7 | 10 | 11.1 | 8.1 | 9.1 | 6.6 | 7.4 | 5.3 | 6 | 4.2 | 4.8 | – | – | – | – |
| 11 | 125 | 20.8 | 23 | 17.1 | 19 | 14 | 15.6 | 11.4 | 12.7 | 9.2 | 10.3 | 7.4 | 8.3 | 6 | 6.7 | 4.8 | 5.4 | – | – | – | – |
| 12 | 140 | 23.3 | 25.8 | 19.2 | 21.3 | 15.7 | 17.4 | 12.7 | 14.1 | 10.3 | 11.5 | 8.3 | 9.3 | 6.7 | 7.5 | 5.4 | 6.1 | – | – | – | – |
| 13 | 160 | 26.6 | 29.4 | 21.9 | 24.2 | 17.9 | 19.8 | 14.6 | 16.2 | 11.8 | 13.1 | 9.5 | 10.6 | 7.7 | 8.6 | 6.2 | 7 | – | – | – | – |
| 14 | 180 | 29.9 | 33 | 24.6 | 27.2 | 20.1 | 22.3 | 16.4 | 18.2 | 13.3 | 14.8 | 10.7 | 11.9 | 8.6 | 9.6 | 6.9 | 7.7 | – | – | – | – |
| 15 | 200 | 33.2 | 36.7 | 27.4 | 30.3 | 22.4 | 24.8 | 18.2 | 20.2 | 14.7 | 16.3 | 11.9 | 13.2 | 9.6 | 10.7 | 7.7 | 8.6 | – | – | – | – |
| 16 | 225 | 37.4 | 41.3 | 30.8 | 34 | 25.2 | 27.9 | 20.5 | 22.7 | 16.6 | 18.4 | 13.4 | 14.9 | 10.8 | 12 | 8.6 | 9.6 | – | – | – | – |
| 17 | 250 | 41.5 | 45.8 | 34.2 | 37.8 | 27.9 | 30.8 | 22.7 | 25.1 | 18.4 | 20.4 | 14.8 | 16.4 | 11.9 | 13.2 | 9.6 | 10.7 | – | – | – | – |
| 18 | 280 | 46.5 | 51.3 | 38.3 | 42.3 | 31.3 | 34.6 | 25.4 | 28.1 | 20.6 | 22.8 | 16.6 | 18.4 | 13.4 | 14.9 | 10.7 | 11.9 | – | – | – | – |
| 19 | 315 | 52.3 | 57.7 | 43.1 | 47.6 | 35.2 | 38.9 | 28.6 | 61.6 | 23.2 | 25.7 | 18.7 | 20.7 | 15 | 16.6 | 12.1 | 13.5 | 9.7 | 10.8 | 7.7 | 8.6 |
| 20 | 355 | 59 | 65 | 48.5 | 53.5 | 39.7 | 43.8 | 32.2 | 35.6 | 26.1 | 28.9 | 21.1 | 23.4 | 16.9 | 18.7 | 13.6 | 15.1 | 10.9 | 12.1 | 8.7 | 9.7 |
| 21 | 400 | – | – | 54.7 | 60.3 | 44.7 | 49.3 | 36.3 | 40.1 | 29.4 | 32.5 | 23.7 | 26.2 | 19.1 | 21.2 | 15.3 | 17 | 12.3 | 13.7 | 9.8 | 10.9 |
| 22 | 450 | – | – | 61.5 | 67.8 | 50.3 | 55.5 | 40.9 | 45.1 | 33.1 | 36.6 | 26.7 | 29.5 | 21.5 | 23.8 | 17.2 | 19.1 | 13.8 | 15.3 | 11 | 12.2 |
| 23 | 500 | – | – | – | – | 55.8 | 61.5 | 45.4 | 50.1 | 36.8 | 40.6 | 29.7 | 32.8 | 23.9 | 26.4 | 19.1 | 21.2 | 15.3 | 17 | 12.3 | 13.7 |
| 24 | 560 | – | – | – | – | 62.5 | 68.9 | 50.8 | 56 | 41.2 | 45.5 | 33.2 | 36.7 | 26.7 | 29.5 | 21.4 | 23.7 | 17.2 | 19.1 | 13.7 | 15.2 |
| 25 | 630 | – | – | – | – | 70.3 | 77.5 | 57.2 | 63.1 | 46.3 | 51.1 | 37.4 | 41.3 | 30 | 33.1 | 24.1 | 26.7 | 19.3 | 21.4 | 15.4 | 17.1 |
| 26 | 710 | – | – | – | – | 79.3 | 87.4 | 64.5 | 71.1 | 52.2 | 57.6 | 42.1 | 46.5 | 33.9 | 37.4 | 27.2 | 30.1 | 21.8 | 24.1 | 17.4 | 19.3 |
| 27 | 800 | – | – | – | – | 89.3 | 98.4 | 72.6 | 80 | 58.8 | 64.8 | 47.4 | 52.3 | 38.1 | 42.1 | 30.6 | 33.8 | 24.5 | 27.1 | 19.6 | 21.7 |
| 28 | 900 | – | – | – | – | – | – | 81.7 | 90 | 66.1 | 73 | 53.3 | 58.8 | 42.9 | 47.3 | 34.4 | 38.3 | 27.6 | 30.5 | 22 | 24.3 |
| 29 | 1,000 | – | – | – | – | – | – | 90.2 | 99.4 | 73.5 | 79.9 | 59.3 | 65.4 | 47.7 | 52.6 | 38.2 | 42.2 | 30.6 | 33.5 | 24.5 | 27.1 |
| 30 | 1,200 | – | – | – | – | – | – | – | – | 88.2 | 97.2 | 71.1 | 74.8 | 57.2 | 63.1 | 45.9 | 50.6 | 36.7 | 40.5 | 29.4 | 32.5 |
| 31 | 1,400 | – | – | – | – | – | – | – | – | 102.8 | 113.3 | 83 | 90.8 | 66.7 | 73.5 | 53.5 | 59 | 42.9 | 47.3 | 34.3 | 37.9 |
